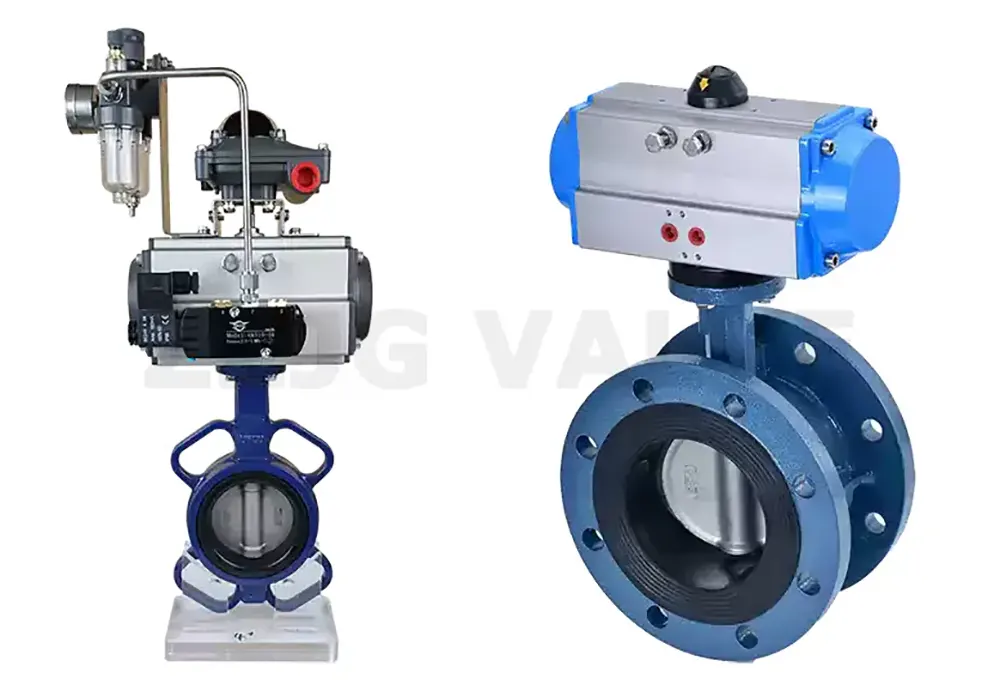

Double Acting Pneumatic Actuator Butterfly Valve

Its core advantage lies in the drive mechanism. Compared to single-acting actuators, the double-acting design utilizes both forward and reverse air circuits to drive the piston, eliminating the need for spring-return mechanisms. This provides greater opening/closing torque, enabling operation of large-diameter butterfly valves ranging from DN50 to DN2000mm. It also features fail-safe operation, maintaining the current valve position during air supply interruption to prevent system fluctuations. Furthermore, the integrated actuator-and-valve design facilitates rapid installation and commissioning. The straight-through flow path minimizes flow resistance and pressure loss, enhancing energy efficiency during high-flow transportation.

Material and seal selection offers greater flexibility. Valve bodies are available in WCB carbon steel, 304/316 stainless steel, and more. Seals include soft seals (rubber, PTFE) and hard seals (hard alloy overlay welding). Soft seals achieve zero leakage, ideal for clean fluids; hard seals withstand temperatures up to 600°C and pressures up to 4.0MPa, handling corrosive media like steam and hot oil. This versatility makes it suitable for chemical acid/alkali pipelines, power plant steam systems, and wastewater treatment plants.

Select material and seal based on medium: use hard seals for particulate-laden fluids; prioritize stainless steel for corrosive media. Next, select the actuator torque based on pipeline pressure and temperature to ensure smooth opening and closing. Finally, add limit switches and positioners according to automation requirements to achieve valve position feedback and precise regulation. Proper selection ensures system stability and reduces maintenance concerns.

With the advancement of Industry 4.0, the intelligent upgrade of double-acting pneumatic actuator butterfly valves has become a trend, leading to the emergence of ZZJG's double-acting pneumatic actuator butterfly valve. This new generation integrates an intelligent positioner, enabling seamless connectivity with PLC and DCS systems. It supports remote monitoring and parameter tuning, further elevating automation in fluid control. Against the backdrop of increasingly stringent environmental policies, its low-energy consumption and low-leakage characteristics help enterprises achieve green production goals, making it an indispensable key device in industrial fluid control.
