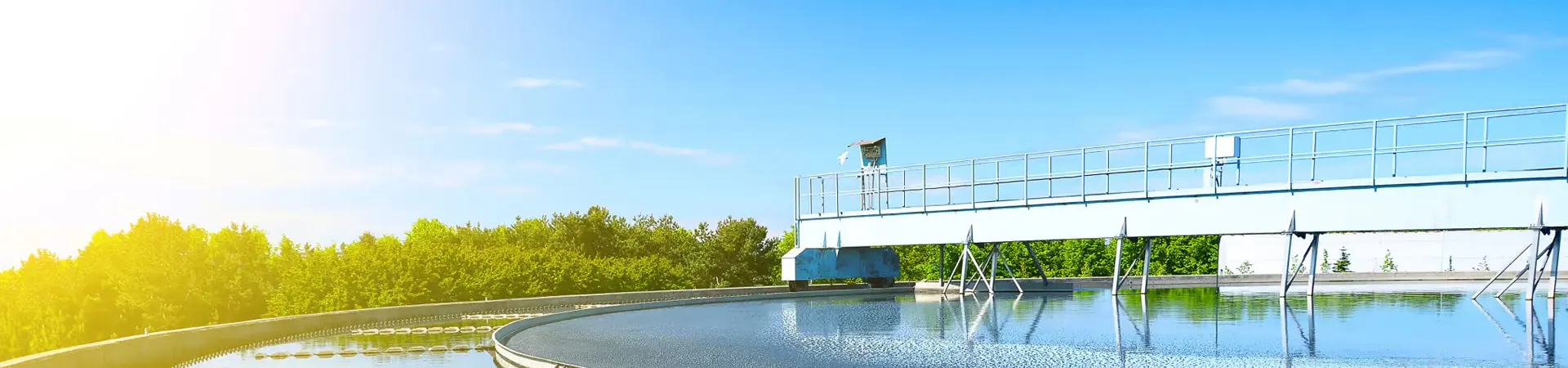

Water & Marine
Water and marine applications demand reliable and corrosion-resistant flow control. ZZJG butterfly valves are widely used in water treatment, seawater systems, and marine pipelines, offering stable operation, durable sealing, and long service life in harsh environments.
| Application Stage | Key Challenges | Recommended Solution Tier | Typical Materials / Liners |
|---|---|---|---|
| Sludge & Biosolids Handling | High solids content, extreme abrasion, potential for clogging, high viscosity. | Severe Service Tier | Ductile Iron (DI) Body / SS 316 Gate / Metal or Resilient Seat |
| Chemical Dosing & Disinfection | Aggressive chemical corrosion (chlorine, ozone, acids, alkalis), zero-leakage essential. | Severe Service Tier | PTFE Lined / Duplex SS / FEP Coated Disc |
| Raw Water / Sewage Intake & Screening | Debris, grit abrasion, high flow, need for robust and reliable isolation. | Process-Duty Tier | Fusion Bonded Epoxy (FBE) Coated DI / SS 316 Disc / EPDM or NBR Liner |
| Secondary (Biological) Treatment | Continuous operation (aeration), moderate solids, long-term reliability for process control. | Process-Duty Tier | FBE Coated DI / Duplex SS Disc / EPDM Liner |
| Tertiary Filtration & Backwash | Frequent, high-velocity cycling, requires fast actuation and durable sealing. | Process-Duty Tier | SS 316 Body & Disc / RPTFE Seat |
| Potable Water Distribution | Must meet strict drinking water standards, long-term leak-tight performance. | General Service & Utility Tier | NSF-61 Certified FBE Coated DI / NSF-61 EPDM Liner |
| Plant Utilities (Service Water, Drains) | General purpose isolation, cost-effectiveness, and dependable shutoff. | General Service & Utility Tier | Cast Iron (CI) or DI / SS 304 Disc / NBR Liner |
SEVERE SERVICE TIER: ABRASION & CORROSION
For the most demanding applications like sludge lines, biosolids, and aggressive chemical dosing, where extreme abrasion and chemical attack cause standard valves to fail rapidly.

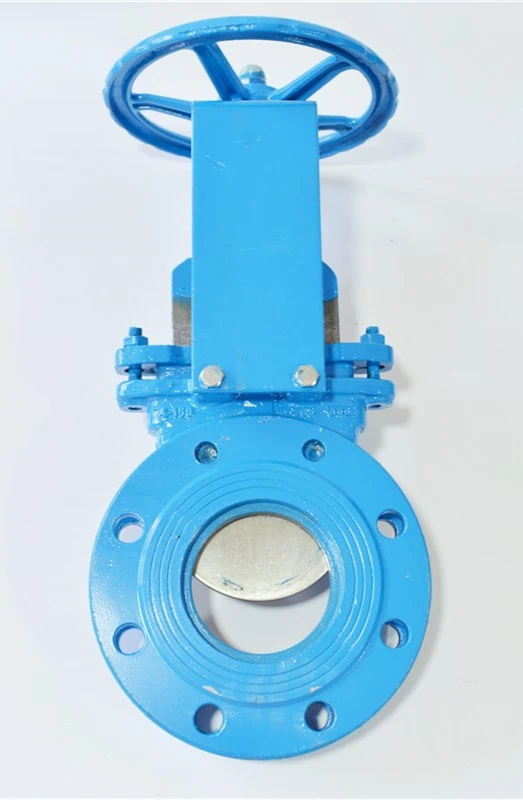

RECOMMENDED: KNIFE GATE & PTFE LINED VALVES
For high solids, our heavy-duty Knife Gate Valves with hardened SS 316 gates slice through media without clogging. For corrosive chemicals, our PTFE Lined valves provide a complete, non-reactive barrier, ensuring zero leakage and ultimate process safety.
PROCESS-DUTY TIER: CORE OPERATIONAL RELIABILITY
For raw water intake, secondary treatment, and filtration backwash systems. These applications require robust valves that withstand continuous operation and frequent, high-velocity cycling.

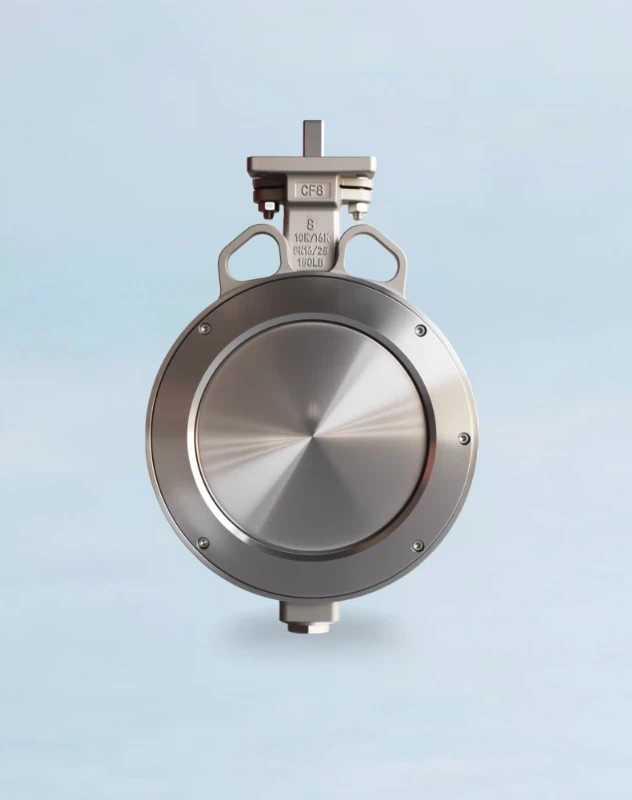

RECOMMENDED: HIGH-PERFORMANCE BUTTERFLY VALVES
Engineered for high-cycle applications. Features like an eccentric disc design, robust bearings, and superior seat materials (EPDM/RPTFE) prevent premature wear and ensure consistent, low-torque operation, reducing actuator stress and long-term energy costs.
GENERAL SERVICE & UTILITY TIER: CERTIFIED & COST-EFFECTIVE
For potable water distribution and general plant utilities, where the primary needs are certified safety, long-term leak-tight performance, and economic value.
RECOMMENDED: RESILIENT SEATED VALVES
Our standard workhorse, built to a higher standard. We use high-quality, a robust, fusion-bonded epoxy coating for long-term, reliable performance. The most economical choice without ever sacrificing quality.
ZZJG SOURCE FACTORY
We are not just a supplier, we are your manufacturing partner. Our integrated capabilities provide unmatched quality control, flexibility, and value.
Source Factory · Flexible Customization
As a source factory, ZZJG delivers premium valves directly to you, offering flexible designs to meet all your industrial needs.
Integrated Casting · Superior Performance
ZZJG valves combine state-of-the-art integrated casting with rigorous quality control to provide high-performance, reliable valves for every project.
API Certified, Guaranteed Reliability
ZZJG’s API-certified valves deliver superior safety, compliance, and operational excellence—direct from our factory to your project.
From Raw Material to Finished Product
1. Raw Material Inspection
2. In-House Foundry Casting
3. Precision CNC Machining
4. Fusion Bonded Epoxy Coating
5. Assembly & Pressure Testing
6. Final Product Ready for ShipmentProven Performance In The Field
The Challenge & Goal
- Challenge: Main sludge line valves failing every 12-18 months due to severe abrasive wear from grit.
- Impact: Unacceptable maintenance costs, labor hours, and risk of operational downtime.
- Goal: Find a valve solution with a service life exceeding 5 years to reduce the Total Cost of Ownership.
Our Solution & Result
- Action: Deployed our High-Performance series with a hardened Duplex Stainless Steel disc.
- Mechanism: The eccentric design lifts the seal away from the seat, preventing the grinding wear that destroyed their previous valves.
- Result: The new valves have been in service for over five years without a single issue, eliminating a major operational headache.
"The chronic failure of our sludge line valves was a constant budget drain. The ZZJG High-Performance valves have been a 'fit-and-forget' solution, paying for themselves many times over in saved maintenance costs and eliminated downtime."
— Plant Superintendent, UAE Municipal Water Authority
