D43H Triple Eccentric Hard Seal Flanged Butterfly Valve

In modern industrial fluid transportation systems, valves serve as the core components for controlling medium flow and regulating flow rates, with their performance directly impacting the stability and safety of the entire production process. The three eccentric hard-sealed butterfly valve has become a preferred choice for high-temperature, high-pressure, and high-wear industrial applications due to its exceptional sealing performance and superior operational adaptability.

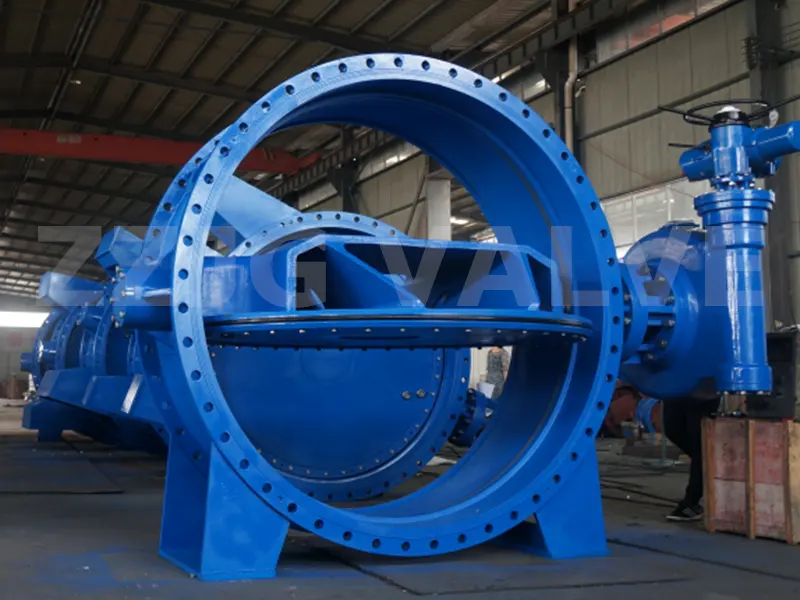

D43H Triple Eccentric Hard Seal Flanged Butterfly Valve Main Components and Functions

Ⅰ. Top operating mechanism
Blue handwheel: Located at the top, it manually rotates the valve's on/off function. The label' worm gear' below indicates the worm gear transmission mechanism, which reduces speed and increases force to lower the operating torque.
Transmission box: A blue square component beneath the handwheel, housing a worm gear set that converts the handwheel's rotational motion into vertical or rotational movement of the valve stem, thereby actuating the valve's opening and closing.

Ⅱ. Intermediate transmission component
Metal valve stem: A long metal rod connecting the transmission box to the valve body below, transmitting operating force to the valve plate.
Spring: Mounted on the valve stem's central section, it may function as a reset mechanism, buffer, or preload to ensure sealing integrity or operational stability during valve closure.

Ⅲ. Valve body and core components
Blue valve body: A circular base housing marked with the brand "BRAY" (Borei Valve), serving as the flow channel for the medium. Flanged connections (with bolt holes on the edges) are provided on both sides for pipe fixation.
Valve plate: A white circular component inside the valve body, rotating 0-90 degrees via the valve stem to control fluid flow (fully open/closed or flow adjustment).
Sealing components: Comprising metal rings (flange gaskets or valve seats) on both sides and toothed elastic rings (O-rings or sealing rings), which ensure airtight connections between the valve body and pipeline while maintaining valve closure to prevent medium leakage.

Ⅳ. The auxiliary accessories feature small bolts, nuts, and washers at the base to secure components and ensure structural stability during assembly.



The introduce of D43H Triple Eccentric Hard Seal Flanged Butterfly Valve

Ⅰ.What is triple eccentric hard sealed butterfly valve?
The main advantage of triple eccentric hard sealing butterfly valve is its unique triple eccentric structure.

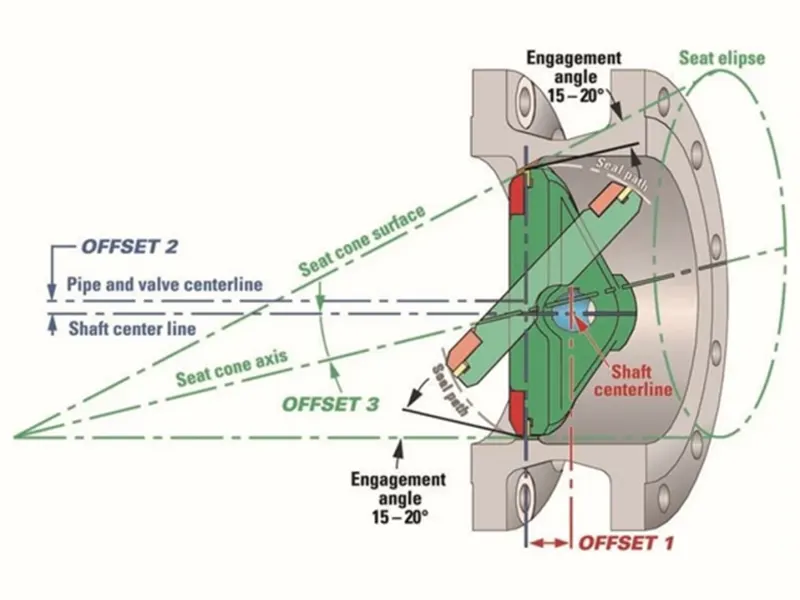

The first is shaft eccentric,the shaft center of the valve stem is off the center of the butterfly seal surface, Reducing Friction Between Seal Pairs in Switching Process. The second is radial eccentricity, The stem shaft is offset from the valve body channel center, allowing the butterfly plate to disengage from the valve seat at the moment of opening, Complete elimination of friction and wear on sealing surfaces. the third is angular eccentricity, The sealing cone axis of the vane seal forms an offset angle with the valve body passage axis.,Achieve when butterfly valve close it can become more closer,zero leakage Sealing effect. Compared with the soft-sealed butterfly valve,Three eccentric hard-sealed butterfly valve adopts metal-to-metal sealing form,Capable of handling high-temperature conditions above 425°C and high-pressure operating environments with ease,possesses exceptional wear and corrosion resistance,The service life is improved several times.

Ⅱ. Application scenarios of three eccentric hard-sealed butterfly valve
a. In the power industry, three eccentric hard-sealed butterfly valves are used in steam pipeline systems of thermal and nuclear power plants to precisely control the delivery of high-temperature, high-pressure steam, ensuring stable operation of the units.
b. Metallurgical industry: The system is designed to handle highly abrasive and impure media such as blast furnace gas and dust slurry in metallurgical smelting processes.
c. Petrochemical industry: Pipeline systems for transporting crude oil, refined products, and various chemical feedstocks, designed to handle complex operating conditions involving flammable/explosive materials and strong corrosive agents.

Ⅲ. Selection and Maintenance Considerations
When selecting the three eccentric hard-sealed butterfly valve, the material of the valve body, the sealing surface material and the drive mode should be selected reasonably according to the temperature, pressure, flow rate and the characteristics of the medium.During routine maintenance, the valve stem should be lubricated regularly, the wear of sealing surfaces inspected periodically, and internal impurities in the valve body cleaned promptly to ensure long-term stable operation.
