From Oil Refineries to Marine Shipping: How Triple Offset Butterfly Valves Conquer Severe Service Co
Oil refining and marine shipping are among the most demanding industrial applications. Refineries operate under extreme temperatures and pressures while handling flammable, explosive, and corrosive media. Marine systems must withstand continuous salt spray, vibration, ship movement, and limited installation space. In both industries, valve reliability is critical. Any sealing failure or leakage can lead to costly downtime, environmental hazards, or even serious safety incidents.
Conventional soft-seated butterfly valves and gate valves often struggle to provide the combination of high-temperature resistance, pressure capability, wear resistance, and long service life required in these harsh environments. Triple offset butterfly valves, however, overcome these challenges through their unique three-offset geometry, making them the preferred solution for severe-service flow control.
The first offset positions the valve stem behind the seat centerline, allowing the disc to disengage from the seat immediately upon opening and eliminating friction during the initial movement.
The second offset shifts the stem away from the pipeline centerline, creating a cam-like motion that enables the disc to rotate through its full 90° travel without rubbing against the sealing surface.
The third offset forms the sealing surfaces into a conical geometry. Instead of sliding across each other, the disc and seat make contact only at the final stage of closing, producing a uniform wedge-shaped line seal. As system pressure increases, the sealing force becomes even stronger, creating a reliable self-energizing metal-to-metal seal.
Combined with precision-machined metal seating, triple offset butterfly valves can operate across a wide temperature range from -196°C to 600°C, withstand high-pressure service, and achieve reliable bidirectional zero leakage, making them ideal for critical industrial applications.
Triple offset butterfly valves provide several key advantages:
Triple offset butterfly valves are particularly well suited for these applications because of their compact and lightweight design.
Compared with gate valves of the same size, they can reduce installation space by approximately 40%, making them ideal for confined engine rooms and pipe corridors.
The valve body and sealing components can be manufactured from corrosion-resistant alloys or protected with specialized coatings to withstand seawater and salt spray. In addition, their robust construction maintains reliable sealing performance under vibration and dynamic loading, making them widely used in ballast water systems, fuel oil transfer systems, firefighting systems, cooling water pipelines, offshore oil and gas production platforms, etc.
By combining outstanding sealing performance, exceptional durability, and long service life, they improve operational safety while reducing total ownership costs throughout the valve's lifecycle.
As industrial facilities continue moving toward higher operating parameters, greater automation, and longer maintenance intervals, triple offset butterfly valves have become the preferred valve solution for severe-service applications across the oil, gas, petrochemical, marine, and offshore industries.
ZZJG Valve manufactures high-performance triple offset butterfly valves engineered for the world's most demanding industrial environments, delivering reliable sealing, extended service life, and dependable performance where safety matters most.
Conventional soft-seated butterfly valves and gate valves often struggle to provide the combination of high-temperature resistance, pressure capability, wear resistance, and long service life required in these harsh environments. Triple offset butterfly valves, however, overcome these challenges through their unique three-offset geometry, making them the preferred solution for severe-service flow control.

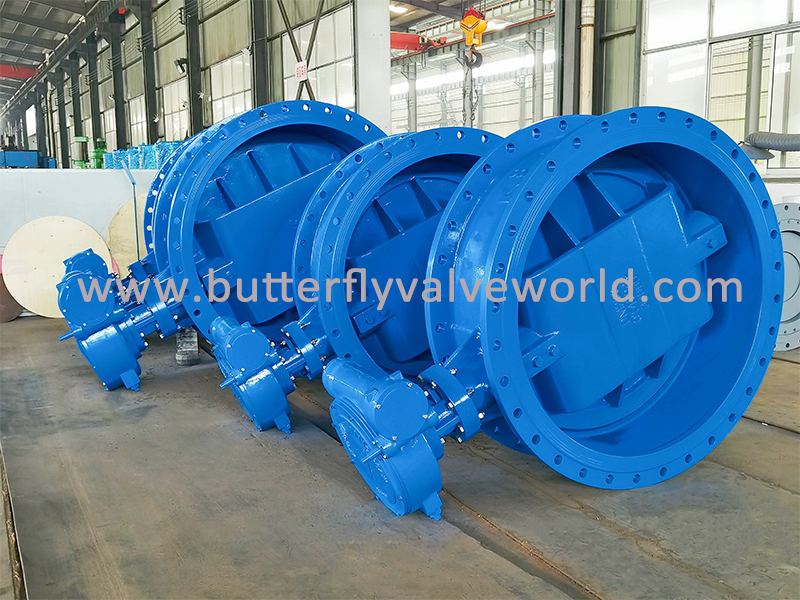

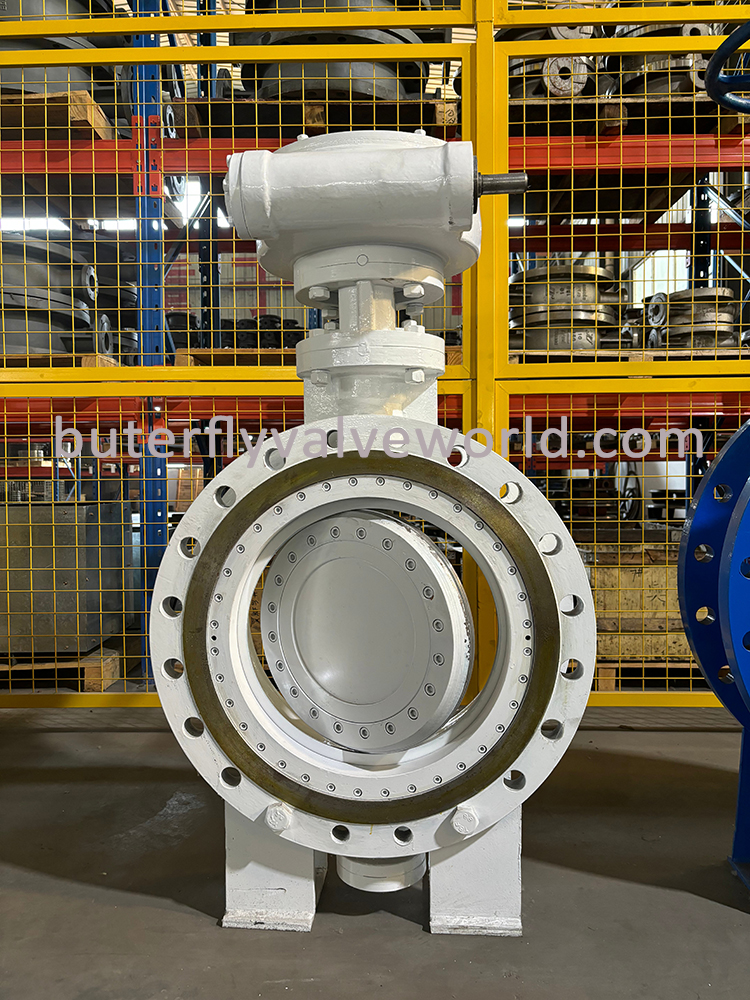

The Engineering Behind Triple Offset Butterfly Valves
The outstanding performance of a triple offset butterfly valve is achieved through its innovative three-dimensional offset design.The first offset positions the valve stem behind the seat centerline, allowing the disc to disengage from the seat immediately upon opening and eliminating friction during the initial movement.
The second offset shifts the stem away from the pipeline centerline, creating a cam-like motion that enables the disc to rotate through its full 90° travel without rubbing against the sealing surface.
The third offset forms the sealing surfaces into a conical geometry. Instead of sliding across each other, the disc and seat make contact only at the final stage of closing, producing a uniform wedge-shaped line seal. As system pressure increases, the sealing force becomes even stronger, creating a reliable self-energizing metal-to-metal seal.
Combined with precision-machined metal seating, triple offset butterfly valves can operate across a wide temperature range from -196°C to 600°C, withstand high-pressure service, and achieve reliable bidirectional zero leakage, making them ideal for critical industrial applications.
Reliable Performance in Oil Refining
Oil refineries include demanding processes such as atmospheric and vacuum distillation, fluid catalytic cracking (FCC), hydrocracking, and hydrotreating. These systems handle hot crude oil, heavy residues, hydrogen sulfide, steam, and highly corrosive chemicals under continuously changing operating conditions.Triple offset butterfly valves provide several key advantages:
- Excellent resistance to high temperatures and high pressures for steam lines, process pipelines, and reactor systems.
- Friction-free operation significantly extends sealing surface life while reducing maintenance frequency.
- Bidirectional zero-leakage performance minimizes the risk of hazardous media leakage, helping refineries comply with stringent fire protection and process safety requirements.
- Long-term operational reliability supports continuous production and reduces unplanned shutdowns.
Designed for Marine and Offshore Applications
Marine environments present a different but equally challenging set of operating conditions. Constant exposure to seawater and salt-laden air accelerates corrosion, while continuous vibration and vessel movement place additional stress on piping systems. Installation space is also limited inside ships and offshore platforms.Triple offset butterfly valves are particularly well suited for these applications because of their compact and lightweight design.
Compared with gate valves of the same size, they can reduce installation space by approximately 40%, making them ideal for confined engine rooms and pipe corridors.
The valve body and sealing components can be manufactured from corrosion-resistant alloys or protected with specialized coatings to withstand seawater and salt spray. In addition, their robust construction maintains reliable sealing performance under vibration and dynamic loading, making them widely used in ballast water systems, fuel oil transfer systems, firefighting systems, cooling water pipelines, offshore oil and gas production platforms, etc.
Lower Life-Cycle Costs with Higher Reliability
Compared with traditional gate valves and globe valves, triple offset butterfly valves offer faster opening and closing, lower pressure drop, reduced operating torque, and lower maintenance requirements.By combining outstanding sealing performance, exceptional durability, and long service life, they improve operational safety while reducing total ownership costs throughout the valve's lifecycle.
As industrial facilities continue moving toward higher operating parameters, greater automation, and longer maintenance intervals, triple offset butterfly valves have become the preferred valve solution for severe-service applications across the oil, gas, petrochemical, marine, and offshore industries.
ZZJG Valve manufactures high-performance triple offset butterfly valves engineered for the world's most demanding industrial environments, delivering reliable sealing, extended service life, and dependable performance where safety matters most.
